PRINTHESIS NEUTRAL

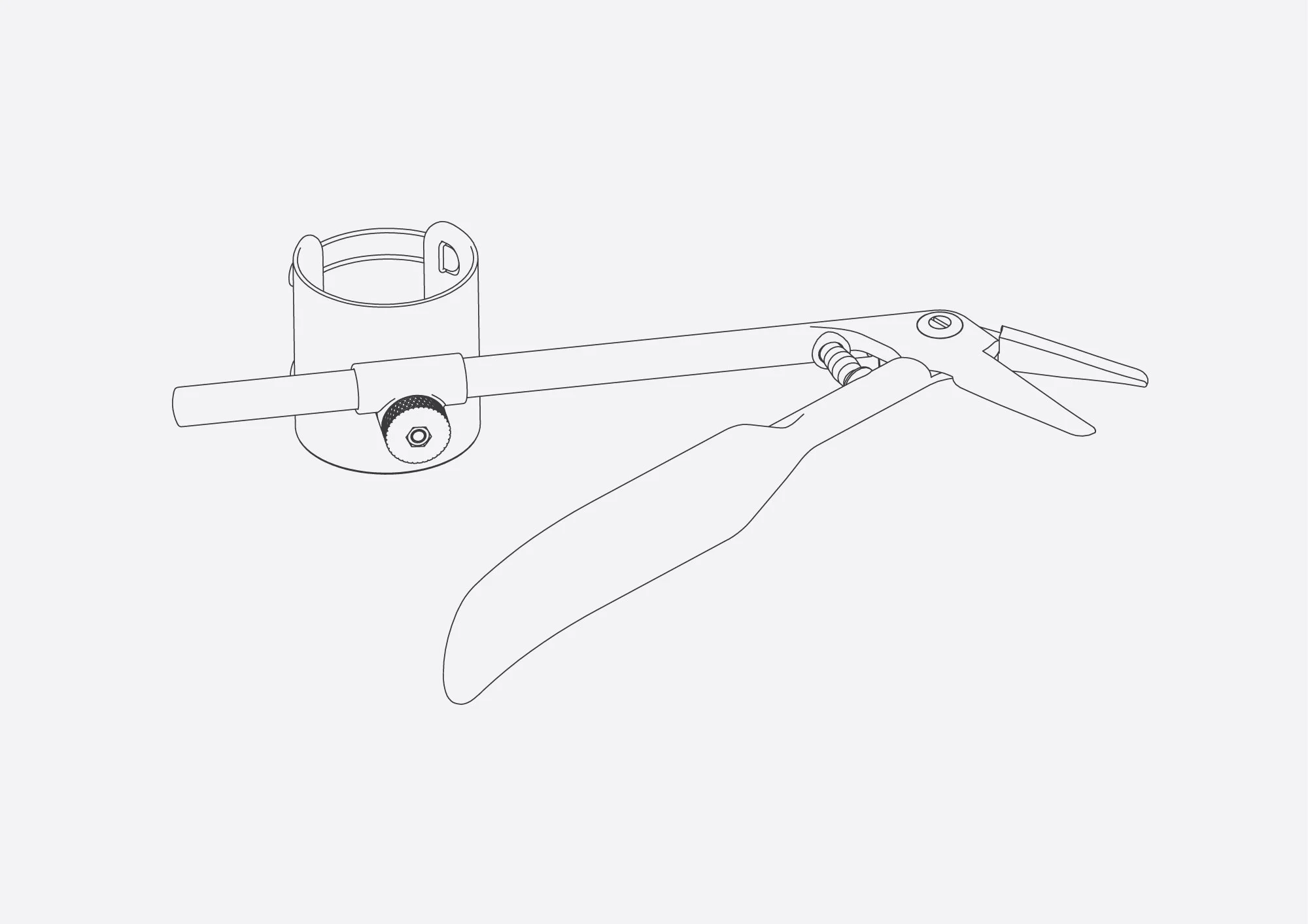

NEUTRAL PRINTHESIS

The “neutral printhesis” is a clean version with a beak that has no features.
This model is as neutral as possible to be able to edit the beak in any way you desire.



ORDER/DOWNLOAD PARTS




ASSEMBLY MANUEL



.1

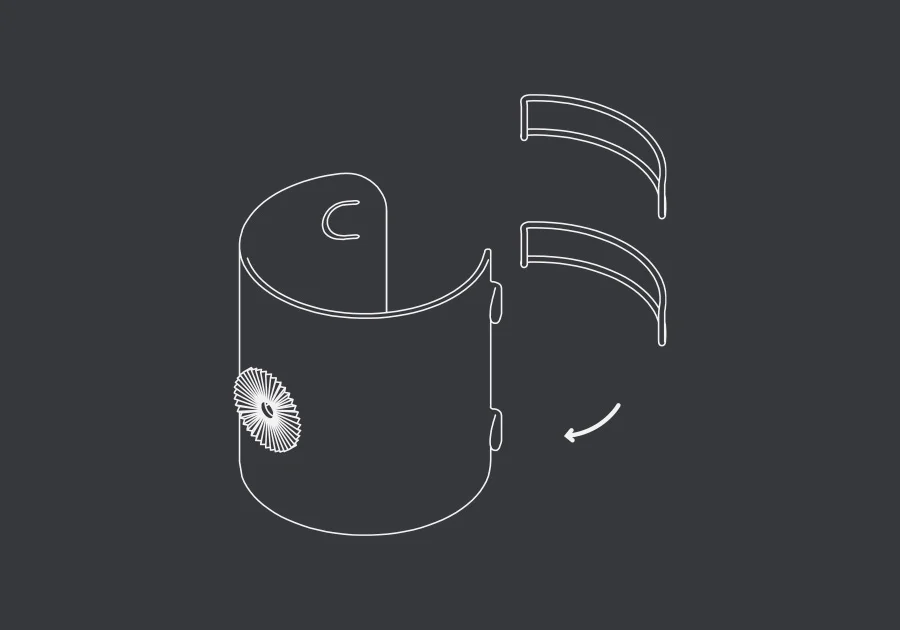

ATTACH BAND

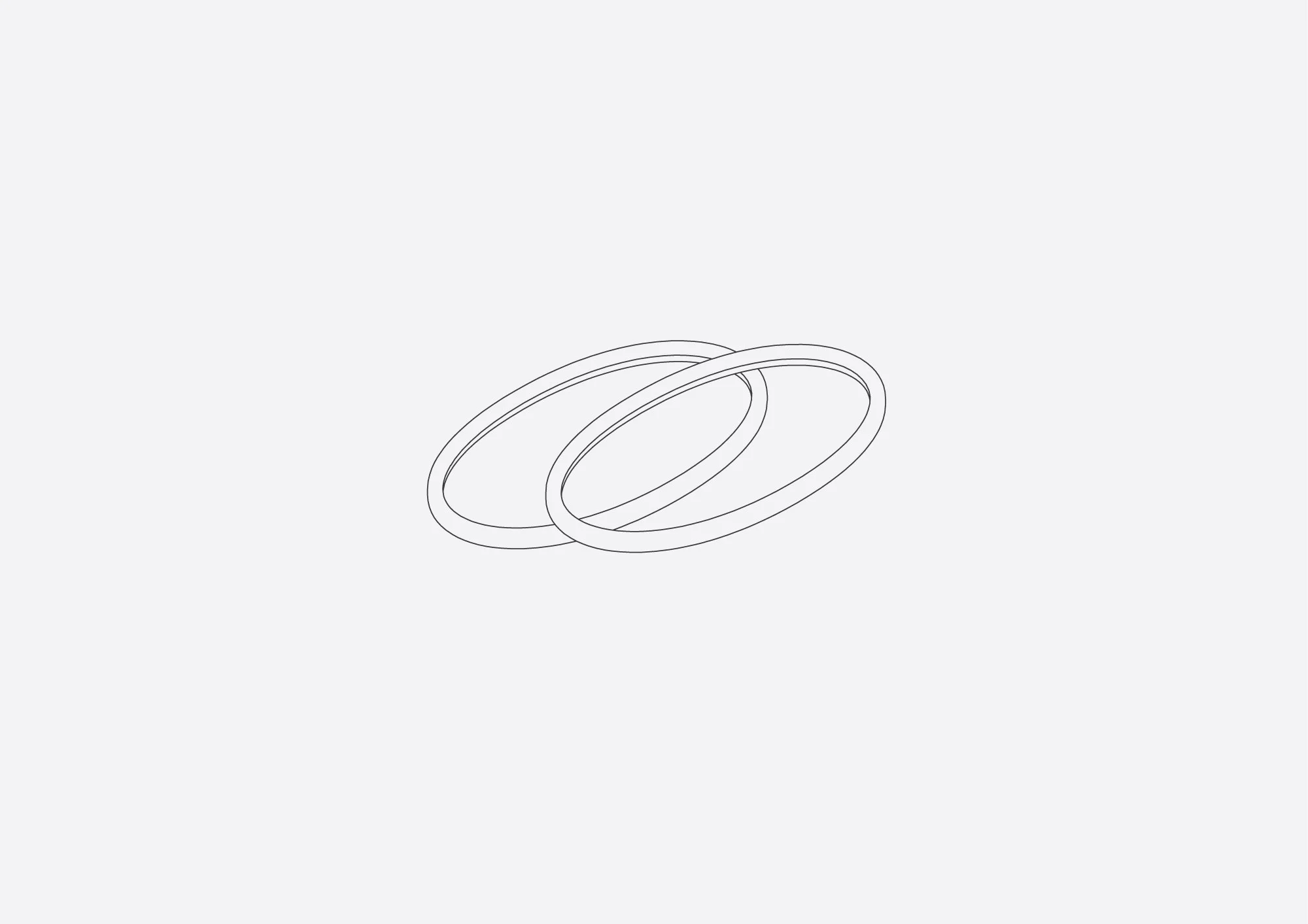

Connect the elastic bands around the armpad lips en slits.



.2

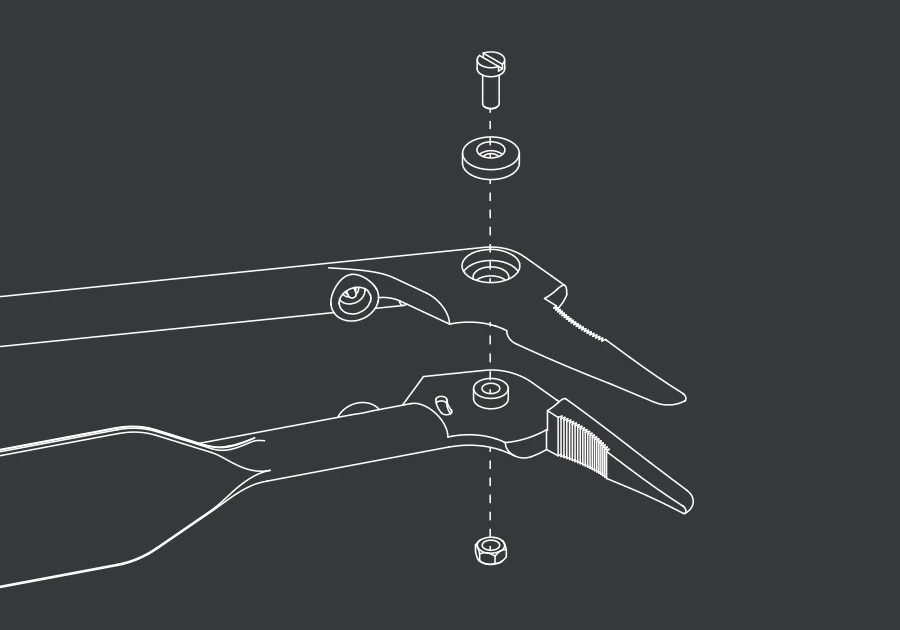

ASSEMBLE PLIERS

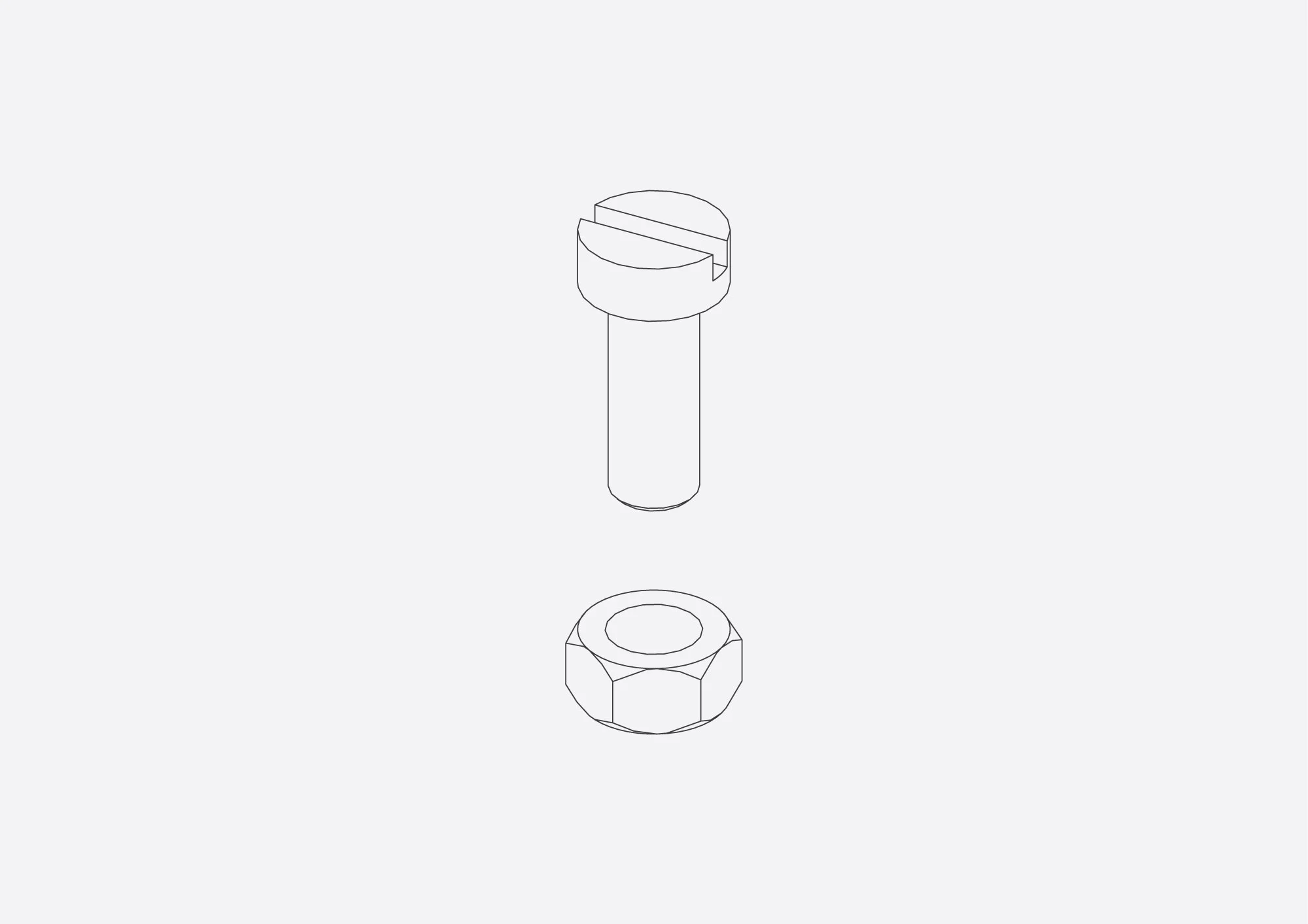

fasten the plier parts with 16mm M6 nut and bolt.



.3

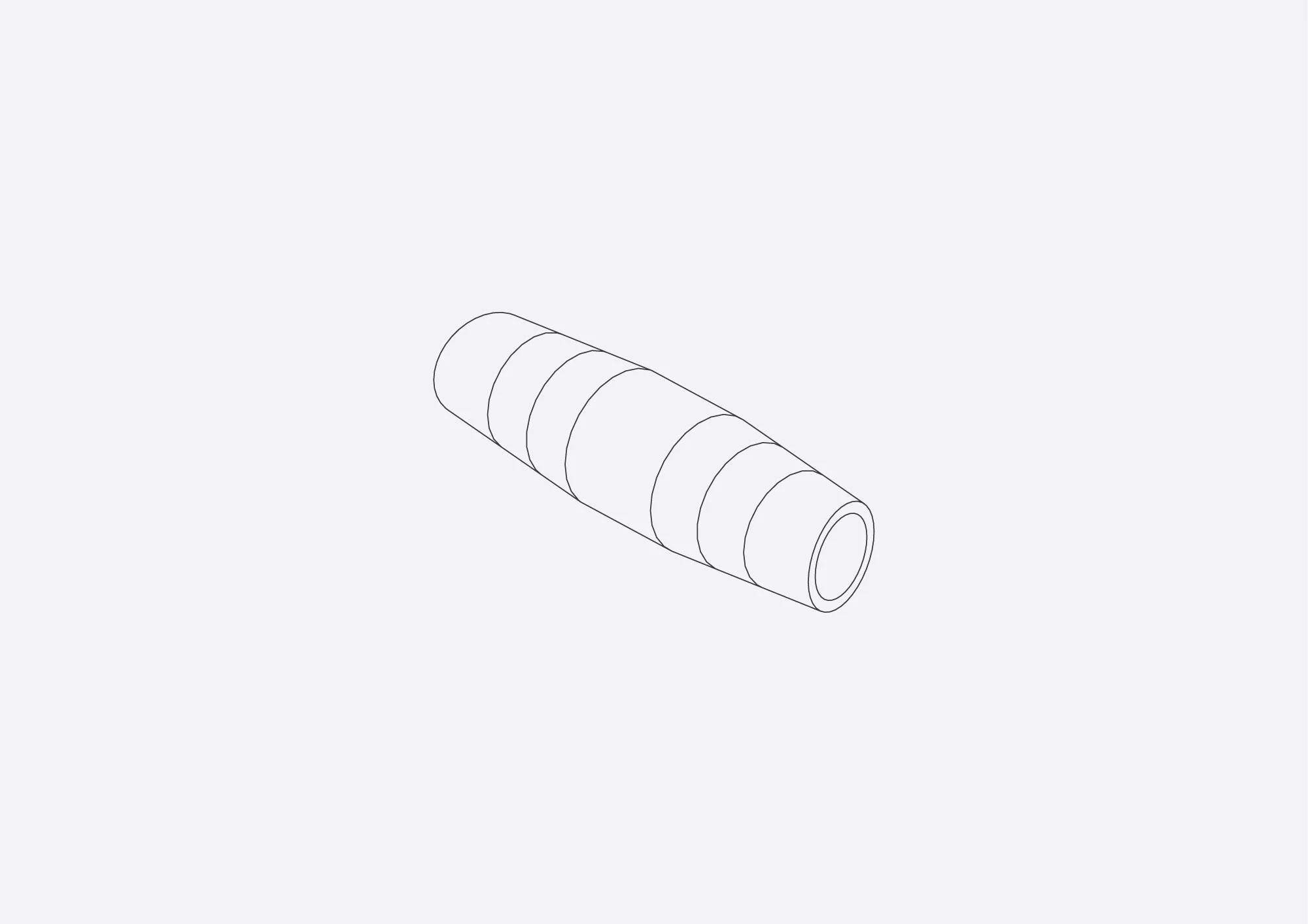

INSERT SPRING
When the pliers are open you can insert the metal spring into the cavities.



.4

CONNECT PLIERS TO ARMPAD
Insert the 40mm M6 nut and bolt through the
knob, ring and armpad.



.5

ADJUST PRINTHESIS
Now you can wear the printhesis and adjust the angles and length to your needs.
